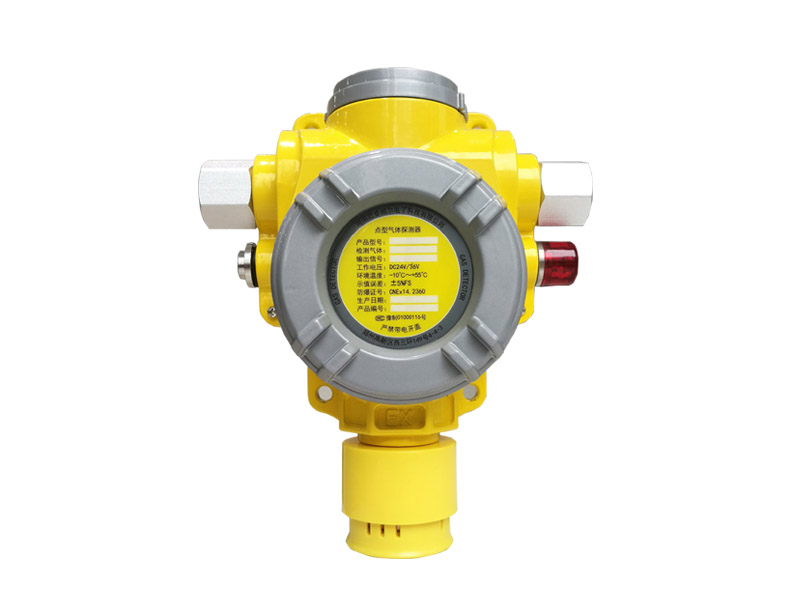

TCB2 Special Toluene and display point gas detectors are made of high-performance sensors and excellent SMD technology. The instrument has good repeatability, temperature and humidity interference, long service life and convenient operation.
The TCB2 point type Specialnon display type gas detector uses three wire or 4 wire structure, and the monitoring instrument or controller is far away from the field to inspect the detection results. It is suitable for on-line real-time monitoring of toxic gas and flammable and explosive gas in all kinds of environment.
◆ The high performance sensor technology, long service life
◆ The corrosion protection shell, durable
◆ It can be used directly with DCS and PLC system
◆ The built-in passive contact switch output
◆ It comes with a standard alarm in one
◆ Detection of gas: combustible gas / oxygen and toxic gases (see technical parameters)
◆ Sampling methods: natural diffusion type
◆ Power supply: DC24V/36V + 10%
◆ Reaction time: T<30s
◆ Detection accuracy: + 3%F.S
◆ The working temperature of -40 DEG C - 70 DEG C, toxic gas: -20 C - 50 DEG C
◆ Wet: less than 95%RH
◆ Output signal: 4-20mA standard signal, RS485 four line /RS line
◆ The connecting cable: RVVP3 * 1.5mm2,
RVVP4 * 2.5mm2
Two line RS requires 2x2.5 mm2,
◆ Transmission distance: 1500m
◆ Eplosion-proof grade:: Exd IIB T6 Gb
◆ Explosion-proof certificate number: CNEx14.2360
◆ weight: 2500g
◆ Appearance size: 212 x 195 x 80 (mm)
◆ Optional accessories: four gas sensing module
