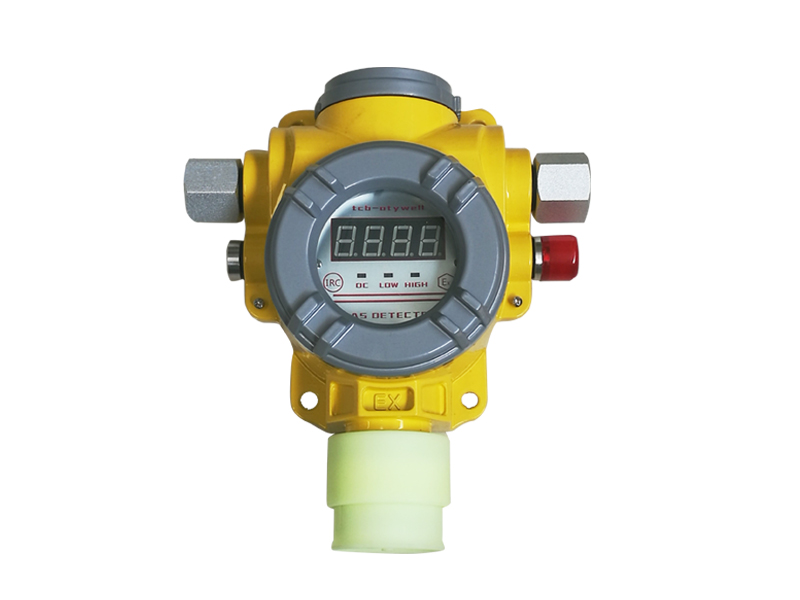

The TCB2 digital display point gas detector is made of convenient wireless remote control technology and high performance sensor combined with excellent SMD technology. The instrument has the advantages of good repeatability, temperature and humidity interference, long service life and convenient operation.
The TCB2 point digital display type gas detector uses two, three line or four wire structure, and the monitoring instrument or controller is far away from the field to see the detection results. It is suitable for on-line real-time monitoring of toxic gas and flammable and explosive gas in all kinds of environment.
◆ Red one of 4 digital display
◆ High performance sensor technology, long service life
◆ Corrosion protection shell, durable
◆ It can be used directly with DCS and PLC system
◆ The built-in passive contact switch output
◆ The convenience of wireless technology
◆ It comes with a standard alarm in one
◆ Detection of gas: combustible gas / oxygen and toxic gases (see technical parameters)
◆ Sampling methods: natural diffusion type
◆ Power supply: DC24V/36V + 10%
◆ Reaction time: T<30s
◆ Detection accuracy: + 3%F.S
◆ Working temperature of -40 - 70 ℃ , toxic gas: -20 C - 50 ℃
◆ Humidity: ≤95%RH
◆ Output signal: 4-20mA standard signal, RS485 four line /RS line
◆ Connecting cable: RVVP 3 * 1.5mm2, RVVP4 * 2.5mm2
Two line RS requires 2x2.5 square
◆ Transmission distance: 1500m
◆ Eplosion-proof grade:: Exd IIB T6 Gb
◆ Explosion-proof certificate number: CNEx14.2360
◆ weight: 2500g
◆ Appearance size: 212 x 195 x 80 (mm)
◆ Optional accessories: four gas sensing module
