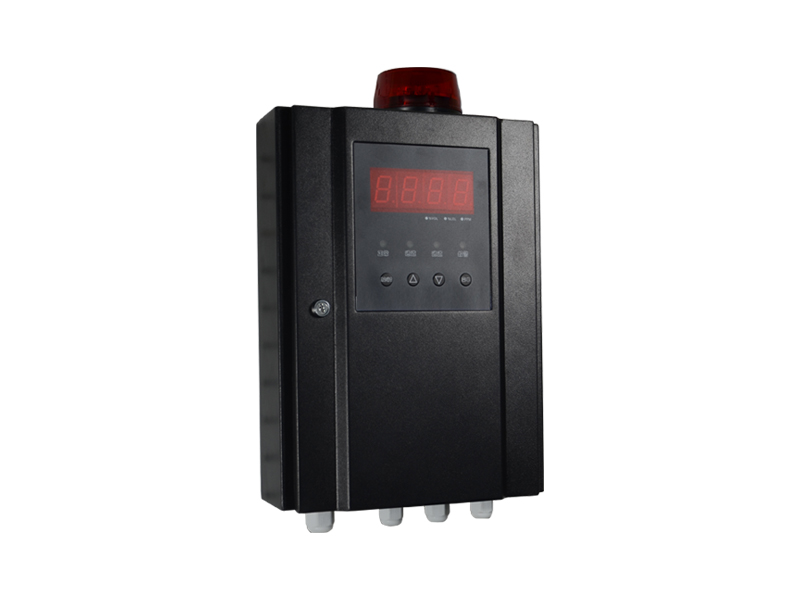

The GDB2 series multi-point monitoring gas detection and alarm controller is used to detect the leakage of flammable gas or toxic gas in the air, and it can bring multiple detection probes and multi-point centralized intelligent control. Once the alarm monitors the gas leakage and reaches the preset alarm value, it can drive exhaust or other peripheral actions, which can effectively prevent explosion, fire and poisoning accidents.
◆ Detection of gas: oxygen, toxic, flammable, carbon dioxide
◆ Measurement range:%LEL,%VOL, PPM
◆ Accuracy: + 3%F.S
◆ Output signal: 4-20mA (line three) or RS485 (two / four)
◆ Alarm: two alarm, can be set by user
◆ Default value: level set free newspaper
◆ Instructions: digital display concentration data or fault state
◆ Recovery function: a key to restore the factory settings
◆ Output mode: passive contact switch, MAX 3.0A
◆ Network capacity: 4 Channel 8 channel 16 channel
◆ Working mode: natural diffusion, continuous work
◆ Working environment temperature: -20 - 50 ℃ C; humidity < 95%RH
◆ Working voltage: AC220V + l0% 50HZ
◆ Power: Monitor Max 6W
◆ Weight: 3000g
◆ Shell material: cold and slab
◆ Appearance of the casing: paint
◆ Transmission distance < 1000m
◆ Cable requirements: three wire 3x1.5 square;
The RS485 bus requires 4x1.5 square
two-line system requires 2x2.5 square
◆ Size: 310mm*220mm*86mm
